When you purchase spares of excavators, dozers, dumpers or diesel locomotives, you have likely heard the words Universal Joint and Propeller Shaft used interchangeably. They do not constitute the same element and confusing them when making a purchase order can cost you time, freight, and money.
Our company, PTC Driveline, produces and distributes both - Self-Lubricated Universal Joints, as well as Propeller Shafts - as OEM-equivalent parts to replace Komatsu, Caterpillar and BEML machines. This guide dissects precisely what each component is, how they interact and what to look into prior to purchasing.

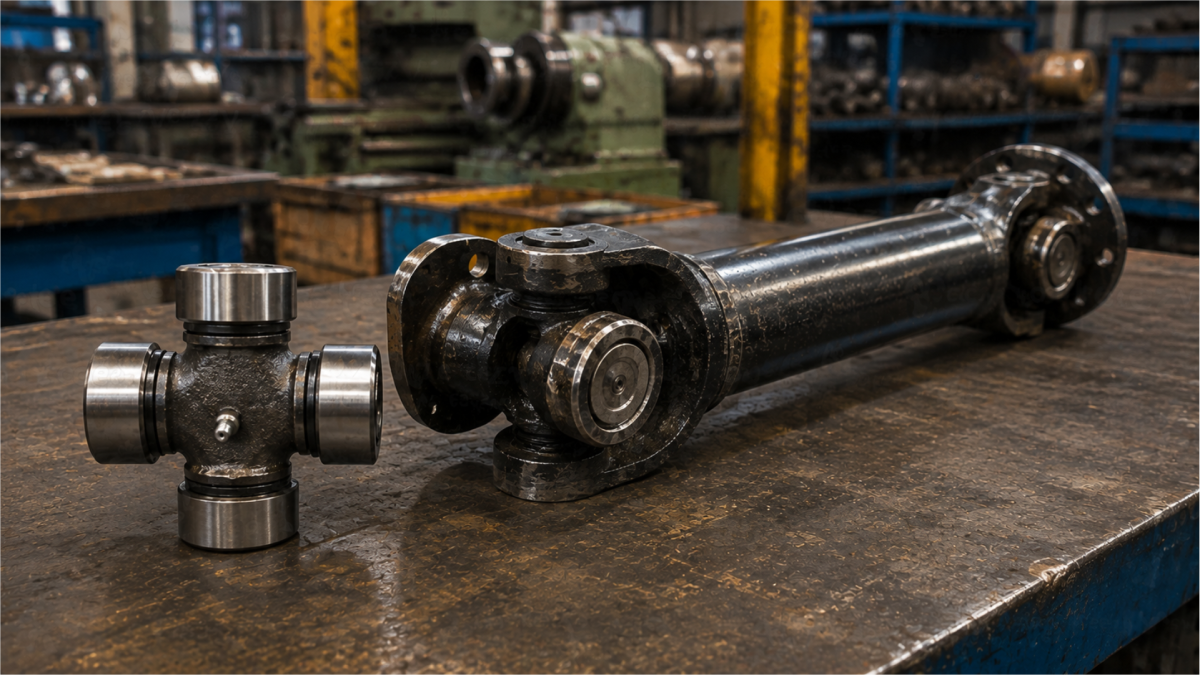

A Universal Joint (U-joint) is a joint that joins two rotating shafts with an angle of the axes to each other. Its task is to convey rotary motion and torque even when the drive line is not perfectly straight – which is virtually never the case in heavy equipment.
The PTC Universal Joints are made of high-alloy steel forgings and are self-lubricated, i.e. no planned re-greasing procedures and no unplanned maintenance downtimes.
A Propeller Shaft (sometimes known as a driveshaft or Cardan shaft) is the propulsion shaft that transmits rotational force between the engine or transmission and the final drive, differential or axle. Where angle is dealt with by the U-joint, distance and torque delivery are dealt with by the propeller shaft.
PTC Propeller Shafts come in a variety of designs, such as PTC Non-Slip, PTC Slip (allows length adjustment during operation), and end adaptor shafts to fit round flanges.
Consider them a team. The long-distance transmitter of torque is the propeller shaft, and the flexible connector that allows the shaft to bend at the ends without disengaging the drive is the universal joint. Universal joints are used in almost all heavy equipment driveshafts at both ends of a propeller shaft.
|
Feature |
Universal Joint |
Propeller Shaft |
|
Primary Function |
Transmits torque across an angle |
Transmits torque across a length |
|
Handles |
Misalignment / angular motion |
Rotational power delivery |
|
Typical Location |
Shaft ends, transmission-to-axle connection |
Between gearbox and differential/final drive |
|
Common Failure Cause |
Cross wear, bearing cup fatigue |
Imbalance, spline wear, tube fatigue |
|
PTC Configurations |
Joint sizes 5C–14C |
Slip, Non-Slip, End Adaptor, Center Plate |
Did You Know?
One heavy equipment drive may have multiple universal joints on the same propeller shaft – typically at one end – to address both input and output misalignment.
Placing the incorrect part, or thinking that a "driveline part is a generic part", results in improperly fitting parts being delivered and machine downtime. Buyers need to specify:
At PTC Driveline, your quote request begins by finding a match between your OEM part number and our equivalent, such as an OEM part such as Komatsu 232-20-54100 cross-references to our PTC 2093, which is also made to the same fit, form, and function.
Not every spare part is constructed to the same standard and in mining or earthmoving work, the difference is quickly realised – normally in unplanned downtime. Quality driveline spare parts should be:
All the above are adhered to at PTC Driveline. Our self-lubricated products do not require any maintenance and so your equipment does not stand idle waiting to be re-lubricated.
The Universal Joint Spare Parts includes the standard and heavy-duty applications in the Off-Highway, Highway and Locomotive segments.
Our catalogue contains 150+ part numbers, so the vast majority of standard OEM cross-references, such as part families, such as the Komatsu 232-20-54100 / PTC 2093 pair, are available in stock or are at least fabricated to order.
Trivia:
The name of the propeller shafts and joints is often called Cardan, named after Girolamo Cardano, the Italian mathematician of the sixteenth century, who is attributed with the description of the mechanism centuries earlier than it was applied to automobiles and heavy machinery.
Our propeller shaft spare parts line is designed to meet the load, speed and duty cycles of construction and mining machines.
All shafts are evened out and inspected prior to delivery, and thus they are operating at OE-level standards the first day.
Authentic OEM components are brand assured but might have a longer lead time and be more expensive. At a more competitive price and quicker turnaround, OE-equivalent spares, when obtained through a certified manufacturer, provide the same fit and performance.
PTC Driveline offers OEM Test Certified Products, which are cross-matched to leading equipment brands, which means that buyers have OE-level reliability without the OEM wait time.
Selecting appropriate drivehaft spares is crucial in keeping heavy equipment running and minimising unplanned downtime. PTC Driveline offers OEM-comparable Universal Joints and Propeller Shafts that can be used in harsh construction, mining, earthmoving, highway and locomotive equipment.
By producing high-quality parts, employing skilled personnel in the application department and maintaining quality supply, PTC Driveline enables its customers to maintain their systems in a running condition.
PTC Drivelines is a reliable producer and distributor of high-quality parts for drilling, construction, earth-moving equipment, and diesel locomotive drilling. PTC Drivelines was founded in 2000. The company specialises in Universal Joints, Drive Shafts, Cardan Shafts, Universal Joint Kits, and other heavy-duty mechanical parts that are used in heavy industry.
PTC offers high-quality products that are dependable and acceptable by the OEMs and end users and has modern manufacturing plants, including forging, machining, heat treatment, dynamic balancing, and quality inspection. PTC is known for its innovative Self-Lubricated Universal Joints, as well as an emphasis on durability, performance, and supply of quality spares across the globe.
However, selecting the appropriate Universal Joint or Propeller Shaft is not simply a matter of matching a part number but rather knowing what each part performs in your driveline and getting it supplied by a manufacturer that builds to OE standards. PTC Driveline has a 150+ product catalogue to meet any single cross-and-bearing unit requirements, as well as complete driveline overhaul needs. We will discuss all these in the further posts; keep visiting the PTC Driveline blog to get realistic, buyer-orientated information on the parts of the drive line.
Need to cross-reference your OEM part or get a quote? Call PTC Driveline now to have OE-equivalent spare parts of the driveline delivered on time, without fail.
