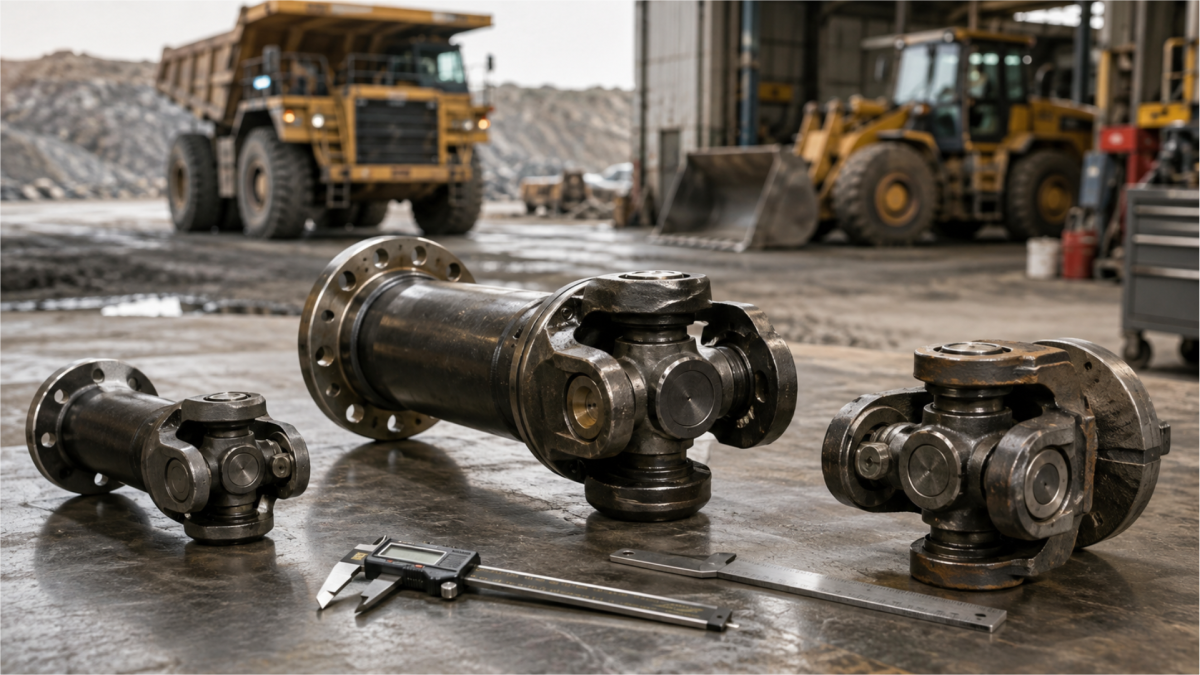

The first step to the right choice of universal joint is getting acquainted with the mechanism of the machine as a drive line requirement. The type of equipment, load to be operated, torque, RPM, working angle, and environmental factors should also be considered before selecting a joint. The component must also be similar in the flange, shaft, yoke, and bearing to fit and transfer the power properly.
When you compare these factors with the technical specifications of the universal joint, you are able to make a choice of a component with good transmission of power, durability, and also compatibility with heavy-duty machinery.
In heavy-duty mechanical drive systems, non-linear shaft alignment is often faced by engineers during the design of the system. What are universal joints? In simple terms, they are mechanical machines made of two rigid yokes with a cross-shaped component joining them to pass rotational movement and torque between two shafts at an angle to each other.
A universal joint coupling is used in heavy machinery as a flexible connection that provides continuous dynamic angular movement without breaking the flow of rotational energy between a motor or engine and driven devices.
Knowledge of internal construction greatly simplifies diagnosis of wear, as well as proper choice of load rating. The heavy-duty units are designed with the ability to endure extreme torsional shocks, radial loads, and harsh environmental conditions.
Yoke Assembly: The hard fork-shaped end fittings directly connected to the driving and driven shafts. The Yoke Assembly is used to pass rotational force off the shaft to the central cross mechanism.
Spider Assembly: The core pivot structure is a four-point cross (usually of high-alloy steel) that forms the core of the assembly. All rotational movement is anchored on the Spider Assembly.
Cross Bearing: The trunnion arms on the cross that fit in the bearing caps. Every Cross Bearing point takes in heavy multidirectional loads during usage.
Needle Bearing: Accurate roller bearings that are embedded within the end caps of each cross trunnion. High-load Needle bearing system minimizes friction and also provides radial forces at high torque.
These elements of precision combined create strong mechanical assemblies that are able to work under harsh conditions in the field.
PTC Drivelines is a reliable producer and distributor of high-quality parts for drilling, construction, earth-moving equipment, and diesel locomotive drilling. PTC Drivelines was founded in 2000. The company specializes in Universal Joints, Drive Shafts, Cardan Shafts, Universal Joint Kits, and other heavy-duty mechanical parts that are used in heavy industry.
PTC offers high-quality products that are dependable and acceptable by the OEMs and end users and has modern manufacturing plants including forging, machining, heat-treatment, dynamic-balancing, and quality inspection. PTC is known for its innovative Self-Lubricated Universal Joints, as well as an emphasis on durability, performance, and supply of quality spares across the globe.
Industrial applications are done in various configurations depending on the required torque capacity, operating speed, and angular tolerance.
The conventional arrangement has one cross and yoke. Although simple and robust, single Cardan designs produce variable output velocity during working with important working angles.
To remove fluctuations in speed, two joints are back-to-back with an intermediate shaft with two Cardan units. This design can cancel velocity variations and can offer almost constant velocity performance over broader operating angles.
CV joints are designed to provide smooth power transmission over high steering or operating angles, and do not experience output fluctuations.
When comparing 3 types of universal joints, such as single Cardan, double Cardan, and constant velocity designs, engineers need to balance the velocity needs with the complexity of operation and cost. By unifying to the correct kind of universal joints, the best drive efficiency will be guaranteed in particular heavy machinery configurations.
These mechanisms are basic Drive Shaft Components, which ensure the smooth operation of heavy equipment. Moreover, critical heavy-duty Cardan Shaft Parts need to be rated so as to be able to bear dynamic continuous loads without shear failure.
Service life is directly affected by proper installation. Here are some maintenance tips that will help eliminate premature failures:
Industrial drive lines require steady delivery of power even when highly misaligned and at high power. The universal joint coupling is a high-capacity joint used as the main flexible interface in various challenging fields:
Wheel loaders, heavy earthmovers, and mining excavators involve heavy-duty U-joints to pass on the torque between engines and drive axles and hydraulic pumps. These are the ones that are exposed to hard ground hits, extreme shock loads, and continuous angular deflection at work.
The working angles of tractors, harvesters, and balers are constantly varying. Power Take-Off (PTO) shafts. Large U-joints enable the rotating power to be transferred between the tractor engine and trailing implements smoothly with no binding or loss of torque.
Raw material conveyors, continuous production lines, and steel processing mills demand constant drive shaft operation subjected to tremendous thermal and mechanical load. Cardan joints are customized to provide smooth shaft synchronization and a vibration-free rotation.
In the marine industry, commercial trucks, off-highway vehicles and propulsion systems use precision drive shafts with high-angle U-joints in the shaft to allow chassis flex, hull vibration, and other dynamic changes in the orientation.
The choice of the appropriate metallurgical composition will directly influence the lifespan and load threshold of the components.
U-joints utilized in standard industries contain some materials depending on the type of environment the operation is in:
Knowledge of the root causes of failures can also assist plant engineers to minimize sudden machine failures. The most prevalent causes of early driveline failure are:
Lack of greasing leads to dry friction in the inner parts of the needle bearing cups. Unlubricated rollers become very hot with time, leading to metal-on-metal galling and complete lockup of the bearings.
Operating a regular joint beyond its recommended operating range increases the velocity variations. This produces devastating harmonic vibration that wears the drive line mounts, yoke ears, and connecting shafts.
Sharp machine jamming or high-impact startups cause peaks of torque that are greater than the structural yielding point of the central cross assembly, resulting in sheared trunnions or broken yoke ears.
The constant heavy vibration during an idle position or working under severe shock induces needle rollers to gouge the trunnion surfaces (false brinelling) and results in repeated vibration and ragged power transmission.
A well-organized maintenance schedule maximizes run time and reduces the overall lifecycle expenses:
The advantages of upgrading to high-capacity, forged universal joints bring considerable benefits in the operation of industrial facilities:
The choice of the type of universal joint to be applied in heavy machinery involves balancing the peak torque demands, the rotational speeds and the operating angles with the ideal structural design. By selecting quality forged parts, strictly adhering to sizing charts, and observing strict lubrication schedules, plant operators and maintenance engineers can maximize uptime and extend the life of machinery.
A Universal Joint is a machine component that enables two shafts to be pinned and provides up rotary force even when the shafts are at an angle. It facilitates flexibility and ease of movement in the drive lines in trucks, equipment and even machinery.
A Universal Joint is employed in drive shafts, trucks, mining equipment, construction equipment, agricultural equipment, and in industrial applications to provide a means of transmitting torque between rotating shafts with high efficiency.
The right Universal Joint is determined by factors like torque capacity, operating angle, RPM, shaft size, load conditions, and the working environment of the equipment.
Typical symptoms of a failing Universal Joint consist of vibration, clunking, power transmission, and excessive drive shaft system play.
A Universal Joint is a type of joint that moves power in and out of angled shafts that have a simple cross and bearing design, whereas a CV joint is a type of joint designed to retain the same velocity during movement and is often found in cars that need a smoother angular movement.
Heavy-duty Universal Joints can be sourced from reputable manufacturers and dealers like PTC Drivelines for truck, mining machinery, and industrial driveline parts to achieve good performance and durability.
