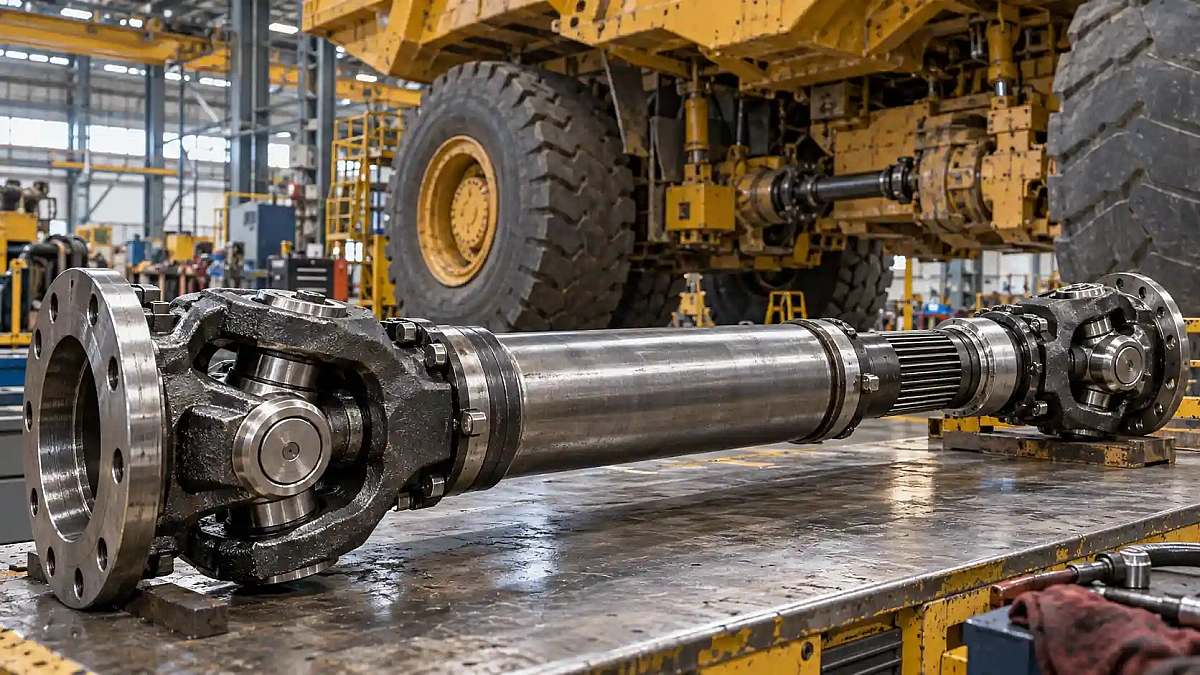

How Propeller Shafts Work in Heavy-Duty Driveline Systems

Watch a loaded dump truck crawl up a pit ramp and you're really watching a propeller shaft at work. It sits low and spins out of sight, yet in mining, construction and other heavy-duty driveline systems it takes a beating every shift. PTC Drivelines has made these parts for over 20 years, so here's what we've learned about how they work.

In this guide, you'll find:

• How a drive shaft moves torque and copes with changing angles
• Which parts make up the assembly
• Warning signs and a simple maintenance routine
• Questions worth asking a supplier first

What Is a Propeller Shaft?

Strip it down and a propeller shaft is a hollow steel tube. It spins whenever the machine is working, takes torque from the transmission and hands it on to the differential or axle.

Here's what to know about it:

• It sits behind the gearbox and ahead of the axle, bridging a gap that rarely stays the same length
• Its whole job is passing rotation along without wasting much of it
• Being hollow, the tube stays strong without adding dead weight
• Depending on the workshop, you'll hear drive shaft, cardan shaft or just "prop shaft"
• On mining trucks the steel is forged alloy, because shock loads there are brutal

How Does a Propeller Shaft Work?

Torque starts at the engine, goes through the transmission and reaches the shaft. Simple enough on paper. In the field the axle bounces and swings with the frame, so the shaft has to keep turning across a gap that never stays put.

Follow the power from engine to ground:

• The engine makes torque and hands it to the transmission
• The transmission matches speed and torque to the job
• The shaft carries that rotation across the gap, even while angles and distances shift
• The differential splits the power between the driven wheels
• Wheels or final drives turn it into pulling force
• This is the propeller shaft working principle in short: keep turning smoothly while everything around it moves
• Torque spikes from loading and braking go straight through the shaft
• The payoff is steady power, even over rough and uneven ground

Transferring Torque Through the Driveline

Torque is the twisting force that gets the machine moving, and every bit of it passes through this shaft.

Four factors do most of the work here:

• Tube size, because a wider, thicker wall resists twisting better
• Steel grade and heat treatment, which set the fatigue life
• Balance, so the shaft doesn't whip at speed
• Joints rated to match the tube, because the weaker link goes first

Handling Changes in Angle and Movement

Axles don't stay put. Hit a bump and the angle and distance to the gearbox shift.

Three parts deal with that:

• Universal joints take up the angle
• The slip joint slides in and out to absorb length changes
• Yokes and flanges lock everything in place at each end

Main Components of a Heavy-Duty Propeller Shaft

Think of the shaft as a small kit of parts. Whichever one is weakest decides how long the whole thing lasts.

Going piece by piece:

• Shaft tube: does the actual torque carrying along the driveline, and has to resist bending
• Yoke: joins the tube to the joint and keeps it aligned
• Universal joint: passes rotation along smoothly at changing angles
• Cross bearing: supports each spider arm and cuts friction under load
• Spider: the cross-shaped core that links two yokes
• Flange: bolts the shaft to the transmission or axle
• Slip assembly: lets the shaft change length with axle travel
• Dust caps and seals: keep dirt out and grease in
• Fasteners: hold flanges and yokes together at the specified torque
• Self-lubricated joints from PTC Drivelines mean less routine greasing for maintenance crews

Did you know? The universal joint is also called a Cardan joint, a nod to Italian scholar Gerolamo Cardano. It's a Hooke's joint too, after Robert Hooke, who studied how it moves back in the 1600s.

Where Are Propeller Shafts Used in Heavy Equipment?

If a machine has to put engine power onto rough ground, it almost certainly has one of these.

A propeller shaft for heavy equipment turns up in places like these:

• Dump and haul trucks, where long shafts carry high torque on steep haul roads
• Articulated dump trucks, which flex constantly at the frame
• Wheel loaders that go through repeated load-and-reverse cycles
• Motor graders, where angles shift as the machine steers and works the blade
• Dozers and other construction machines facing heavy shock loads
• Mining machinery running through dust, vibration and nonstop shifts
• Locomotives on long railway duty cycles
• Stationary industrial drives that need steady torque
• PTC Drivelines supplies parts for Komatsu, CAT, Volvo and BEML models

Why Propeller Shaft Design Matters in Heavy-Duty Applications

A shaft sized for a road truck won't last long on a haul road. Design is what separates the two.

The points that matter:

• Torque capacity has to cover the peaks, not just the average, with some margin on top
• Forged alloy steel stands up to fatigue, impact and shock
• Good drive shaft balancing cuts the vibration that eats bearings and seals
• Lower joint angles mean less wear and less heat
• Correct yoke phasing keeps speed fluctuation in check
• Sturdy bearings and caps cope with heavy, repeated loads
• Better design usually means fewer unplanned stops and a longer service life

Common Signs of Propeller Shaft Problems

Shafts usually complain before they fail.

Listen and feel for these signs of propeller shaft problems:

• Vibration through the floor or seat, often worse at certain speeds
• A clunk or knock when you shift or pull away
• Squeaking from the joints, usually dry or worn bearings
• Play in a joint when you move it by hand
• Brown dust around the joint, a common hint of bearing wear
• Uneven wear or visible damage on the shaft
• Joints that run hot after a shift
• Ignored symptoms can end in shaft failure and axle damage

How to Maintain a Propeller Shaft for Reliable Performance

Nothing fancy here. Regular, boring checks cost less than a day of downtime.

A propeller shaft maintenance routine that works:

• Inspect for cracks, dents and loose parts at every service
• Grease the joints and slip assemblies at the recommended intervals
• Check the universal joints for play
• Confirm yoke phasing and operating angles
• Tighten bolts to the specified torque
• Replace worn parts before they take the whole shaft with them
• Choose self-lubricated joints, which PTC Drivelines offers, to cut greasing
• Keep inspection records so wear trends show up early
• Clear mud and debris from slip joints

How to Choose Reliable Propeller Shaft Manufacturers and Suppliers

Pick a supplier carelessly and even a good design won't save you. That holds when you compare propeller shaft manufacturers in India, too. A cheap quote is no bargain if the shaft turns up unbalanced or won't fit.

Ask any supplier about:

• Manufacturing capability, including forging, machining and testing in-house
• Material quality, ideally alloy steel forgings with traceable grades
• Dynamic balancing of finished shafts
• Dimensional accuracy against OEM drawings
• Fit for your machine and duty
• Clear OEM and reference numbers
• Someone who'll still answer technical questions after the invoice is paid

PTC Drivelines is an ISO 9001:2015 certified drive shaft supplier based in Chennai. Provide us with a machine model or even a drawing and we can provide you with OEM Cross Reference information as well as identify your part.

Check Equipment and Application Compatibility

A shaft can match the drawing and still be wrong for your machine. Begin with the machine itself.

Confirm these before ordering:

• Machine make, model and serial range
• Shaft length, flange and yoke dimensions
• Load and terrain conditions
• OEM or reference part number

Verify Manufacturing Quality and Technical Specifications

Quality gets built in long before a shaft ships. Ask how it's made.

Get clear answers on:

• Balancing grade and test method
• Steel grade and heat treatment
• Tolerances and inspection against drawings
• Torque rating for your duty
• ISO 9001:2015 or a similar quality certificate
