Common Causes of Industrial Driveshaft Failure (And How to Prevent Costly Downtime)

Continuous operation is the most important in heavy manufacturing, mining, energy, and processing plants. The core of these high-torque mechanical processes is the industrial drive shaft, which is a key element that enables the transfer of mechanical power and torque between engines or motors and driven machinery.

When a shaft breaks down, all the activities are brought to a halt. An unplanned downtime may cost a facility thousands of dollars per hour, not to mention the incidental damage to the machinery that is usually accompanied by a devastating break. Knowledge of the underlying causes of failure, the correct drive shaft components, and the timing to upgrade to the heavy-duty drive shaft is the way to go to safeguard your facility's bottom line of the facility.

Understanding the Core Types of Driveshafts

In order to troubleshoot and maintain drive assemblies, it is beneficial to have knowledge of the exact mechanical design at hand. Various operational configurations use different types of driveshafts to support different loads, angles, and rotational rates:

• Industrial Drive Shaft: It is developed to transmit high continuous torque to heavy machinery, pumps, and mills, and production lines of large scale.
• Cardan Shaft: This is a joint that has a universal joint on both ends that allows the transmission of mechanical power to misaligned or offset shafts.

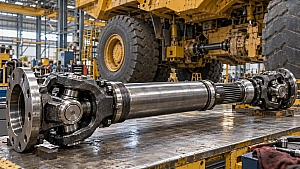

• Propeller Shaft: This is the common type of shaft in marine propulsion, heavy transportation, and some power plant equipment requiring linear allocation of the torques.
• Truck Drive Shaft: This is created to support high torque loads, frequent stop-and-go loads and harsh vibration conditions which are common in transport fleets.

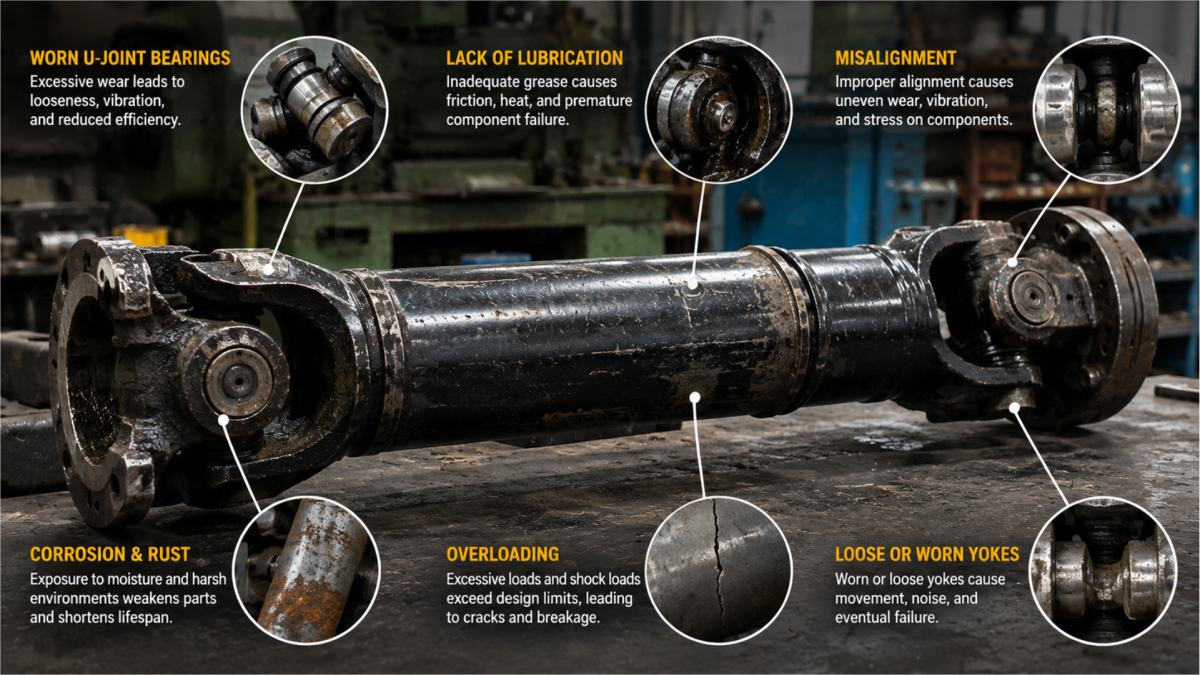

Top Causes of Industrial Driveshaft Failure

Driveshafts are designed to last, yet harsh conditions of operation ultimately wear them down. The commonest mechanical failures are due to:

1. Angular and Parallel Misalignment

Even a minor angular or parallel displacement of the motor and driven machinery places extremely high stress on the universal joints and bearings. This causes fatigue, excessive vibration, and ultimate snapping of the main shaft body over time.

2. Lack of Proper Lubrication

Universal joints and slip splines need high-grade lubrication, which is continuous. Dry joints generate sharp friction that causes thermal expansion, localized welding, and extreme structural failure of key drive shaft components.

3. Torque Overload and Shock Loads

Running machinery at loads exceeding its design power options - or experiencing jams and shock loads suddenly - is above the material yield strength of the power transmission system. This leads to torsional twisting, stripping of splines, or total fracture of the shaft.

4. Severe Imbalance and Vibration

Rotational equilibrium is ruined by a curved shaft, lost balance weights or deteriorated parts. The vibration that results is a hammer to connected machinery, ruining seals, bearings, and nearby gearboxes.

About PTC Drivelines

PTC Drivelines, a major manufacturer of Universal Joints, Drive Shafts, Cardan Shafts, and highly-engineered driveline products in heavy-duty applications. The company started in 2000 and has been supplying industries in the mining, construction, earthmoving equipment, and railroad industries since then with durable and reliable spare solutions. PTC has a high emphasis on quality, innovation, and advanced manufacturing processes to develop products that align with the challenging needs of the OEMs and international clients. The self-lubricated universal joints and the maintenance-free drive line solutions that the company has specialized in guarantee improved performance, fewer downtimes, and efficient operation in the long run.

When to Repair vs. When to Invest in a Drive Shaft Replacement

Early warning indicators such as humming, high-frequency vibrations, or movement in the slip joint can be detected by the maintenance teams, who can then replace the individual parts before they are seriously damaged.

But when the inspection shows too much torsional twisting, broken weld yokes, or severely worn spline teeth, a complete drive shaft replacement is needed. Recovery of a heavily damaged unit will usually lead to failure several times, increased total expenditure, and prolonged operation.

Standard vs. Custom Driveshafts: Finding the Right Fit

Standard OEM parts are suitable with normal, predictable loads. Nevertheless, engineered solutions are frequently needed in heavy-duty applications or extreme operating angles or custom machine layouts.

In specialized off-road vehicles or extreme utility equipment to serve industrial locations, the use of custom 4x4 driveshafts would be warranted to provide the highest level of power delivery without the chance of binding or shaft yield when the axle goes to extremes.

Facility managers typically search for a custom drive shafts near me service when assessing supplier options to achieve quick turnaround times and reduce shipping delays when doing emergency repairs.

Understanding the Cost of Custom Driveshaft Solutions

Although the initial expense of tailor-made driveshaft engineering is more than the off-the-shelf solutions, the payback period is immense. A tailor-made shaft will provide:

• Increased material fatigue strength.
• Dynamic balancing to precise operating RPMs.
• Significant decrease in unplanned downtime and secondary damage to machinery.

Essential Components: The Role of Key Drive Shaft Parts

All drive shaft assembly are dependent on a number of interrelated items that are in harmony with each other. During regular maintenance, it is important to inspect the following parts:

• Universal Joints (U-Joints): Allow the transmission of power flexibly at varying operating angles.
• Slip Splines: Allow movement in an axial direction as a result of thermal expansion or equipment movement.
• Flange Yokes: Firmly attach shaft to motor gearboxes and driven equipment.
• Center Bearings: Bearings to support long multi-piece shaft systems to minimize sagging and harmonic vibration.

Practical Checklist to Prevent Driveshaft Failure

• Implement Schedule-Based Greasing:  Have high-pressure grease on all U-joints and slip splines in routine maintenance periods.
• Check Laser Alignment: Periodically check the alignment of shafts to motors in order to eliminate unnecessary radial loads.
• Watch Vibration Levels: Vibration sensors can be used to measure the vibration levels of a component and identify imbalances or wear before it becomes disastrous.
• Upgrade to Heavy-Duty Designs: With standard components in use, the systems are prone to repeated failures as they go through heavy production cycles; upgrade to active heavy-duty shafts that are more tolerant to the higher torque loads.

How Does an Industrial Driveshaft Work?

A simple industrial driveshaft is a transmission of mechanical force and rotating torque to driven equipment at a physical distance or angle between a prime mover (e.g., an electric motor, diesel engine, or hydraulic turbine).

In contrast to the strict shafts which require very perfect inline installation, industrial driveshafts employ flexible joints and telescopic splines to pass smooth power through misaligned parts.

The 3-Step Power Transmission Process

1. Torque Intake & Angular Flexing: Torque is applied to the shaft via a flange to the motor. Universal joints (U-joints) at each end bend to accommodate angular errors, eliminating binding even in the non-aligned case when the input and output shafts are not aligned.
2. Axial Extension & Compression: When heavy machinery is bound by thermal expansion or operational motion, internal slip splines move back and forth through accuracy gear teeth. This is an action of telescoping which allows variation of distance without applying axial forces on interlocked motor bearings.
3. Balanced Rotational Delivery: This system has a central, tubular shaft (usually made of forged alloy steel or high-tensile carbon fiber) rotating at high speeds. Precision dynamic balancing provides smooth delivery of the torque to the driven machine devoid of damaging centrifugal vibrations.

Applications of Industrial Driveshafts

Power transmission in continuous-duty manufacturing, energy and heavy infrastructure industries requires industrial driveshafts.

Conclusion

The core of heavy machinery is an industrial driveshaft: when it works correctly, production is efficient. Nevertheless, there are always indicators of misalignment, insufficient lubrication, or wear on the components; without paying attention to them, a sudden mechanical failure is bound to happen. Knowing the general reasons for failure, conducting regular Vibration and lubrication inspections, and selecting quality parts as replacements, plant engineers can drastically increase equipment life and protect their operations against unforeseen delays.
