A dump truck is stuck in the middle of a haul road. The engine is fine. The transmission is OK. The problem is that this little Christmas dinner plate-sized spider assembly is worn out, and it just cost the site one full shift.
It's small and it's so important. The correct heavy equipment spider assembly distributes torque without trouble, shields the shafts surrounding it and maintains a machine earning. The incorrect one comes with a premature death and without warning. From fitment to paperwork, this is a guide to what buyers should consider before ordering, keeping unplanned downtime off your schedule.

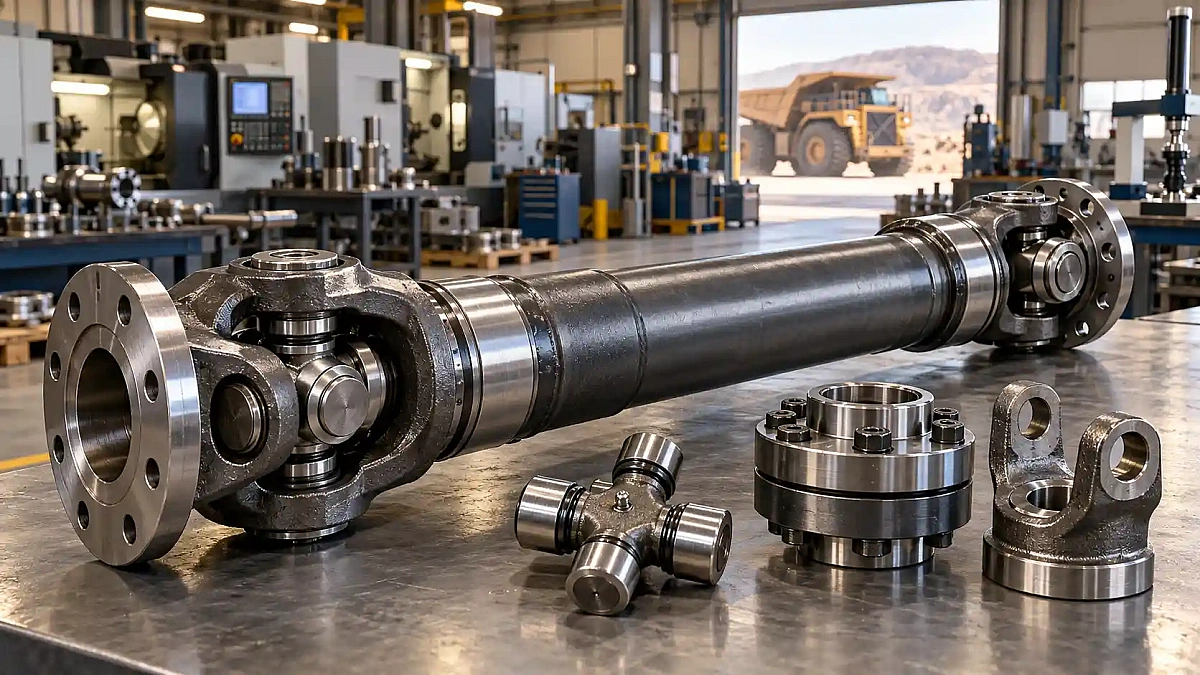

The spider is at the centre of a universal joint. It's a cross-shaped piece with four journals, each with a journal cup. The important thing about those journals is that when they connect at an angle they allow two shafts to turn together.
That's what it means in a driveline: when the power of the transmission goes through every bump, tilt and load change. The universal joint spider assembly is responsible for this 24 hours a day—it's the fastest wearing component of the universal joint. With this knowledge, the following checklist is much easier to use.
It also provides a good reason why a small problem with one spider seldom stays a small problem! The vibration from the play in the joint travels down the shaft and places a vibration load on the yokes, the couplings and the seals in the gearbox that are in close proximity to the joint.
When purchasing spare parts for industries, it is a good way to avoid having to make a lot of guesses by using a simple checklist. All of the following factors will help you determine if a heavy duty spider assembly is going to pass mustard at your site — and not just on your workshop bench. Solve them systematically and record all answers that you can't verify.
Always start with the machine and not the part! Each machine can have different spiders at different joints and an OEM compatible spider assembly must match the make, model and location on a driveline. This is the most usual problem when a part arrives and cannot be used without it.
Two spiders can be an exact fit and be two completely different sizes. Be careful to take the correct sizes as any minor deviation in the spider assembly dimensions causes vibration and bearing failure. The caliper reading only takes minutes and can save a week of waiting.
The forged alloy steel is the starting point for a high strength spider assembly. The forging straightens the grain of the metal and surface hardness is fixed during heat treatment to resist wear and shock the journals require. Don't only ask if something is claimed to prove it, ask the maker how it is proving the claims.
The actual bearings are needle roller bearings inside each cup. A good spider assembly bearing will run freely when there is no dirt and water in it but will be tight when there is. A sealed spider assembly can prevent grease from leaking out and slurry from getting in, and that can determine the service life on mines and quarries.
Paper ratings don't amount to much if they are not provided in context. When a truck load is being pulled away up a slope, a spider assembly for mining equipment is subjected to high torque, long duty cycles and sudden shock. Communicate all the following information with your supplier before ordering.
The reliability of a part depends on its people. If you are using spider assembly manufacturers in India, be sure to choose the ones who disclose the specifications openly and are able to provide you with trace details of the products they are delivering. A good spider assembly supplier also maintains a smooth flow of stock and takes care of export paperwork.
The spider assembly replacement costs much less than a second order and second shutdown when it is done correctly. Confirm no purchase until the supplier can match your OEM spider assembly number and documentation should be in writing.
Most failures trace back to a few repeat errors in spider assembly selection. Once you know what to watch out for, it's easy to avoid them, particularly when ordering a heavy duty spider assembly for machines that don't take a day off.
All these errors seem minor when you're buying the product. Inside, they manifest as noise, heat, dripping grease and finally a frozen machine.
A buyer seldom requests only a portion. Who knows how it works—the machine? PTC Drivelines, Chennai, is a manufacturer of driveline parts for Komatsu, Caterpillar, Volvo and BEML products. That looks like this.
The goal is the same if you operate a single dump truck or an entire mining operation: the best part, the best machine, and evidence of quality.
When selecting well, fit is the first consideration, followed by the material, the sealing, the load rating and a supplier who provides paperwork to support the choice. Review them prior to ordering, and downtime decreases. Today's few thoughtful inquiries are more cost-effective than the single failed joint thereafter. Treat the spider as a precision part, that's what your driveline does.
If you are comparing spider assembly manufacturers, explore the Spider Assembly range from PTC Drivelines.
|
Provide your OEM number, drawing or machine model with an enquiry and receive a matching quote from PTC Drivelines. |
It helps to transfer torque from a universal joint to two shafts at an angle. The bearings enable the machine to rotate without any problems, and the driveline remains flexible as the machine moves. If not, then there would be a period when power transfer would cease when the shafts were misaligned.
Take measurements of the bearing cup diameter, cross span and journal size of the old part. When comparing these readings, please refer to the supplier's drawing and your OEM part number. If the quantities don't add up to exactly what you want, please ask before placing an order.
Most heavy uses require forged alloy steel, and the improvement of the material by heat treatment. It is more resistant to shock, wear and fatigue than cast material when subjected to repeated torques. Request hardness and inspection reports for verification of grade.
Yes. The seals keep grease from escaping, and dust, mud and water from getting into the bearing cups. Sealing is one of the major factors that leads to early bearing failure and repeat replacement in mining and earthmoving.
Yes. Provide the OEM reference, machine model and assembly position information. It will be matched to a corresponding part by a good supplier and the final part number will be confirmed in writing before dispatch.
Yes. Provide the part number, drawing/dimensions, manufacturer can consider the requirement! Verify tolerances, material and testing information before giving the go ahead for production to ensure the completed part meets your requirements.
