Describe the effect of an off-balance shaft on a machine and how to detect it in due course.
If the driveshaft on a loader is worn, you'll know it before you hear it while riding on the seat. In some cases, it is due to an unbalanced shaft. Power is transmitted from the gearbox to the axle or driven unit by a Cardan shaft, which does this at varying angles. Tug it this way on one side and every turn pulls it sideways. Vibration builds. Joints wear. Someone receives a telephone call regarding a stalled vehicle. If you're purchasing a heavy duty Cardan shaft, it's important to know about balance. PTC Drivelines manufactures driveline products for mining and earthmoving applications, as well as locomotive applications, and this blog contains what we would want every buyer to know.
Balancing is easy to explain. Identify the heavy end of a rotating component and attach it. An even shaft is a silent shaft. One that doesn't fight on every rotation is one that doesn't fight on every rotation, and the fight gets tougher as speed increases. That's why, when it comes to buying a car, Cardan shaft balancing is on the list of the careful buyer. There are two ways to conduct workshops.
In any case, make sure that you request the readings. Documentation of work, both before and after, serves as proof of work.
Heavy machinery has long hours. Imagine a dump truck on a haul road or a wheel loader on a stockpile. They are hard all day and small errors add up. Balance is important to any industrial Cardan shaft in three ways:
The first one is obvious: vibration.
Then the damage creeps into the components that secure the shaft.
Last comes uptime.
Did You Know? “ISO 21940-11 is the standard for balanced quality grades of rigid rotors. This supersedes the old ISO 1940-1. A lower grade number the greater the fine balance.”
Imbalance doesn't usually come alone. May start in the factory or develop on the field.
Some of those start from the factory, which is why checks are important when comparing Cardan shaft manufacturers. Inquire into what is being checked prior to dispatch, and what is being written down. Another common source is shafts that have been subjected to multiple repairs without a new balance check. A supplier that knows the answers will provide them without any problems.
There is a standard practice to be followed by reliable Cardan shaft manufacturers in India and you are free to enquire. Learn about their balancing machines, inspection steps and technical team prior ordering. Expect three stages.
If a shaft is damaged then there's no point in balancing it, so inspect it first.

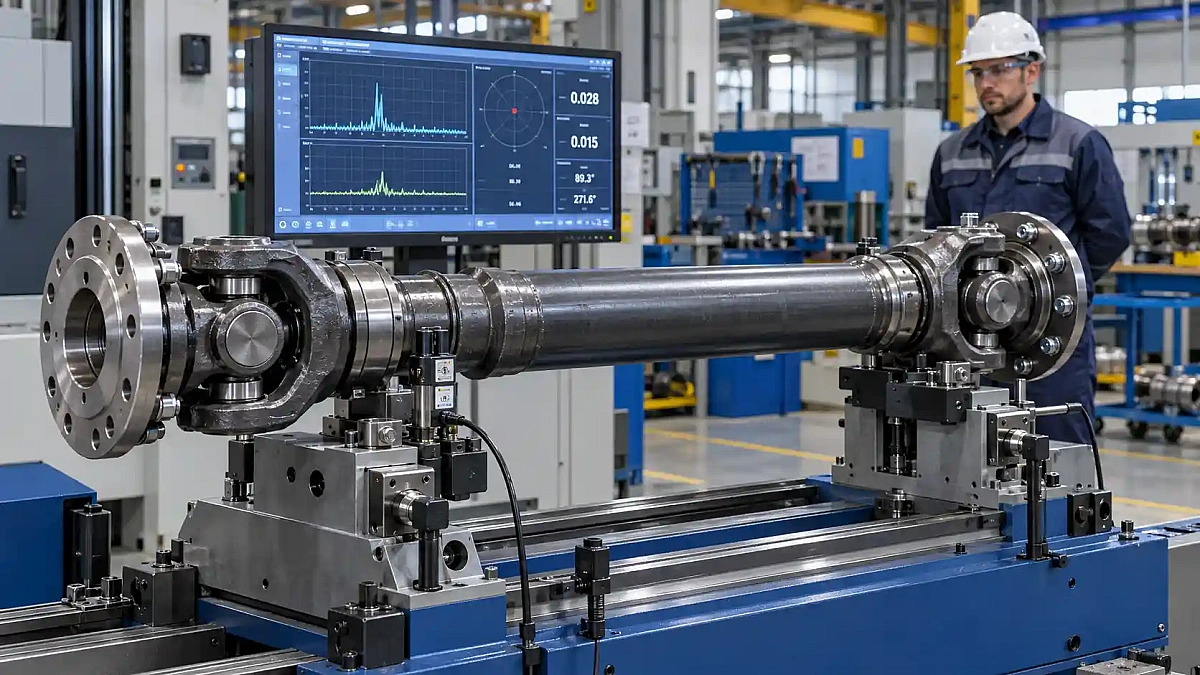

The shaft is now placed on the dynamic balancing machine.
TRIVIA: “The faster the object's velocity, the greater the imbalance force. If the shaft is run twice as fast, the force quadruples.”
Correction, which is followed by proof.
A machine rumbles in advance of its failure. Be familiar with what the complaints are:
Don't jump to conclusions about balance just yet, though. These signs are the result of worn mounts, non-alignment and other defects in the driveline. Have a tech confirm the cause before swapping parts. A guess that is incorrect wastes time and leaves the problem unresolved.
One shaft will be ignored if the balance is not maintained. It is protected by regular care.
A balanced machine with a balanced shaft provides a more serene experience and a healthier joint. You will notice the difference in the uptime and also in the amount of repair costs. PTC Drivelines manufactures driveline parts using a rigorous quality control process that is managed by the ISO 9001:2015 certification system. Take some time to visit the Cardan Shaft range and put your needs in touch with our group. Before ordering, a quick conversation will save many hours of downtime later.
Maintaining the smooth rotation of the shaft, prevents vibration to remain low. Then, the bearing, universal joint and other nearby parts are subject to less stress. Steadier power delivery, less breakdowns and a longer working life of the driveline. Over a number of years, that will be reduced repair costs and reduced emergency workshop calls.
Typically, wear or assembly problems. The typical ones are bent tubes, worn joints, lost balancing weights, loose fasteners and out-of-phase yokes. It can be made worse by dirt and bad alignment. Before saying it is just the balance, have a technician check each one. This will save you time and money.
Be alert for increasing vibrations, abnormal noise and premature bearing wear. It can be difficult to tell the difference between misalignment and worn mounts, so it's best to have a professional take a look at the shaft. A test is then conducted on a balancing machine to determine if imbalance is truly the problem. Do this prior to ordering a new shaft.
There are no 'one-size-fits-all' numbers. Follow manufacturer's schedule, and shorten for dusty, wet or high-load work. Each check is for joint play, lubrication, fasteners and cracks. Re-check the balance following repairs to shaft, yokes or welds. Make brief notes for each check to be able to identify trends.
Enquire about their favourite balancing machines, the grade of balance that they balance to and how they mark the results of their inspections. Make sure the material is suitable for the model of equipment as well. Specific answers refer to a supplier that has quality control at all stages. It's good to ask for a sample inspection report.
