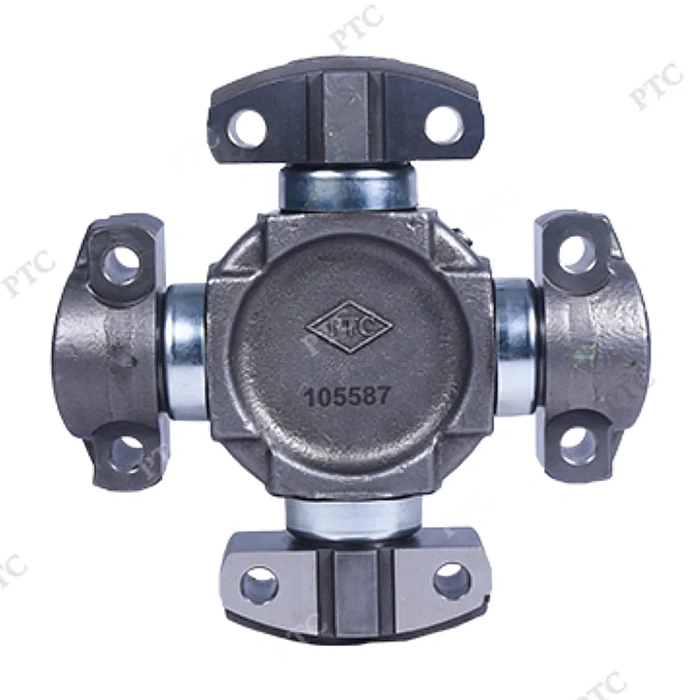

The PTC 1003 Spider Assembly (OEM: BEML 953-PI-11027) is a robust universal joint spider replacement part for BEML BH100 mining machines. It is designed for transmitting the necessary power and torque through the universal joint propeller shaft, while at the same time providing the ability to accommodate the needed angular motion in the driveline.
The PTC 1003 Spider Assembly is an assembly consisting of a precisely machined spider or cross with four trunnion arms and bearing support points. It operates as a part of the universal joint assembly, transferring the rotational power through connected propeller shaft parts during the operation of heavy duty machinery.
Being a wear component, the spider assembly should be inspected from time to time for signs of excess joint clearance, vibration, strange noise, bearing wear or any other damage. The replacement of the part should be done whenever excessive clearance or wear of the parts occurs or during the overhaul of the propeller shaft and driveline. PTC 1003 is manufactured with special emphasis on dimensional tolerance, strength of materials, bearing fitment and reliability of the part.
Other driveline components from PTC Drivelines compatible with the BEML BH100.
Whether you need OEM-compatible spare parts for your mining fleet, a reliable export supply partner, or want to become a regional distributor — our team is ready to help within 24 hours.
If the required part number is not listed in our product range, simply share the part number, drawing, dimensions, or technical specifications with us. Our team can review your requirement and manufacture the part to your preferred specifications.
