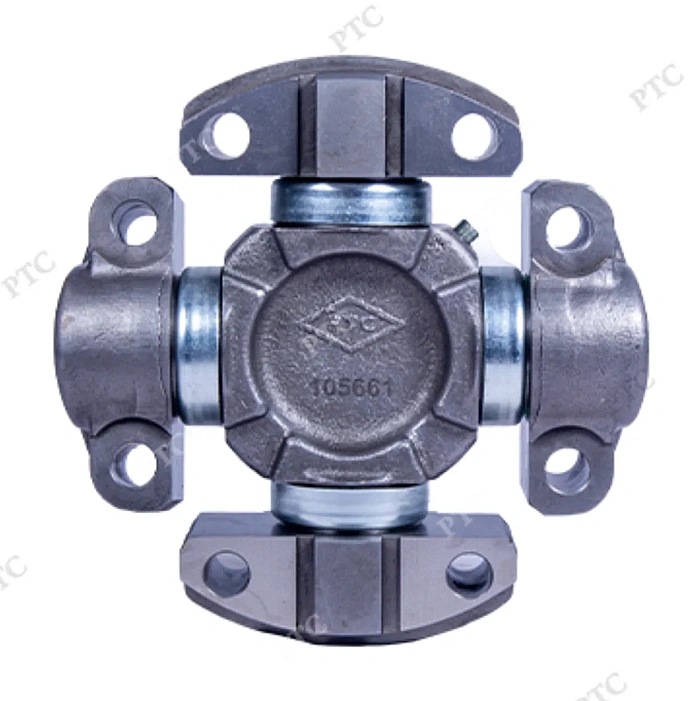

If you are running a Komatsu WA500-3 wheel loader and you notice play in the driveline, the spider is likely worn out. The PTC 1028 Spider Assembly (OEM: KOMATSU 425-20-11620) is built as a straight, drop-in replacement for the front universal joint spider on the WA500-3. Every dimension matches the original, so there's no cutting, grinding or reworking needed to get it installed.
This part sits at the heart of the front propeller shaft's universal joint, carrying torque from the transmission through to the front axle. It's a forged cross with four trunnion arms, each one carrying a needle roller bearing that allows the joint to flex as the machine works. Like any spider, it wears with use — vibration, clunking on direction changes or visible play in the joint are the usual signs it's time to swap it out.
