HM 1035 81805356 / 81019082 OE Part

Name: HM 1035 81805356 / 81019082 OE Part
Brand: PTC Drivelines
SKU: HM 1035 81805356 / 81019082

Caterpillar / CAT Replacement Part

HM 1035 81805356 / 81019082

OEM Test Certified Self-Lubricated 24h Quote Response ISO 9001:2015

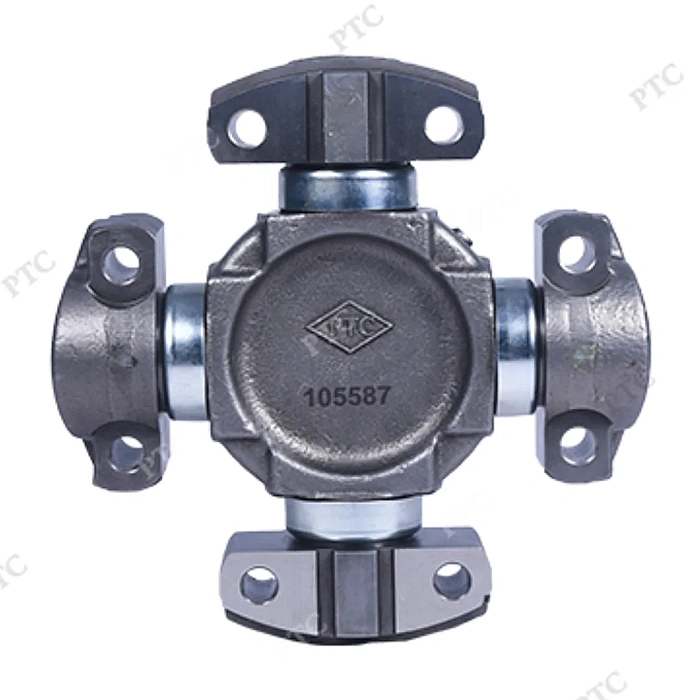

PTC-1019 Spider Assembly (OEM: HM 81805356 / 81019082 )is a heavy-duty universal joint cross assembly used in heavy machinery drivelines, designed for dump trucks and haul trucks. This spider assembly is fitted to the driveshaft / propeller shaft assembly, where it transmits engine torque through the axle universal joint, and is compatible with HM 1035 dump trucks.

Built from high-grade alloy steel forgings, the PTC-1019 spider assembly delivers superior fatigue strength and impact resistance for demanding mining and earthmoving duty cycles. The trunnion journals are precision-ground and hardened to withstand continuous high-torque loading in heavy-duty off-highway applications. Each unit is dimensionally matched to OEM specifications, ensuring direct drop-in fitment with no equipment modification required, and a full quality inspection report is available on request.

Technical Specifications

PTC-1019 — SPIDER ASSEMBLY (OEM: 81805356 / 81019082)

Specification	Detail
OEM Part Number	81805356 / 81019082
PTC Part Number	PTC-1019
Product Type	Spider Assembly (Universal Joint Assembly)
Machine Compatibility	Dump Trucks / Haul Trucks
Application No.	CAT 1035
Application	HM 1035 Dump Truck — Propeller Shaft Universal Joint
Spider / Cross Material	High-Grade Alloy Steel Forging (Hardened & Ground)
Bearing Type	Sealed Needle Roller Bearing (4 cups per assembly)
Sealing System	Three-Stage Self-Lubricated Sealed
Lubrication	Self-Lubricated — Factory Charged, Lifetime Sealed (no re-greasing required)
Maximum Articulation Angle	Up to 12° (operating) · 32° (static)
Dynamic Balancing	Applied to complete shaft assembly — G16 ISO 1940
Surface Finish	Trunnion journals: Ground to OEM tolerance class
Heat Treatment	Case hardened trunnion journals to required case depth and hardness
Operating Environment	Heavy Mining — Coal, Iron Ore, Copper, Gold — Open-pit & Underground
Temperature Range	−40°C to +120°C (bearing and grease rated)
Grease Type	High-Temperature Lithium Complex Grease (Factory Charged)
Fitment	Direct OEM Replacement — No Equipment Modification Required
Weight (Approx.)	Contact PTC for exact weight with dimensional drawing

Frequently Asked Questions

What is the PTC part number and OEM number for this spider assembly?

This is PTC part number PTC-1019, cross-referenced to OEM part numbers 81805356 / 81019082. This cross-reference allows for easy identification and sourcing when replacing the original equipment component.

Which machine and application is the PTC-1019 designed for?

The PTC-1019 is compatible with HM 1035 dump trucks (Application No: CAT 1035). It is fitted to the driveshaft / propeller shaft assembly, where it transmits engine torque through the axle universal joint.

Is the PTC-1019 a direct OEM replacement?

Yes, the PTC-1019 is dimensionally matched to OEM specifications for this application. It ensures direct drop-in fitment with no modification to the equipment required.

What material is the PTC-1019 spider assembly made from?

It's manufactured from high-grade alloy steel forgings for superior fatigue strength and impact resistance. The trunnion journals are precision-ground and hardened to withstand continuous high-torque loading in heavy-duty off-highway applications.

Does the PTC-1019 require regular maintenance or greasing?

No it's a self-lubricated, sealed assembly, factory-charged for lifetime lubrication under continuous high-torque loading. A full quality inspection report is available on request to confirm service specifications.
