CAT 2T3013 OE Part | PTC Drivelines

Name: CAT 2T3013 OE Part
Brand: PTC Drivelines
SKU: CAT 2T3013

Caterpillar / CAT Replacement Part

CAT 2T3013

OEM Test Certified Self-Lubricated 24h Quote Response ISO 9001:2015

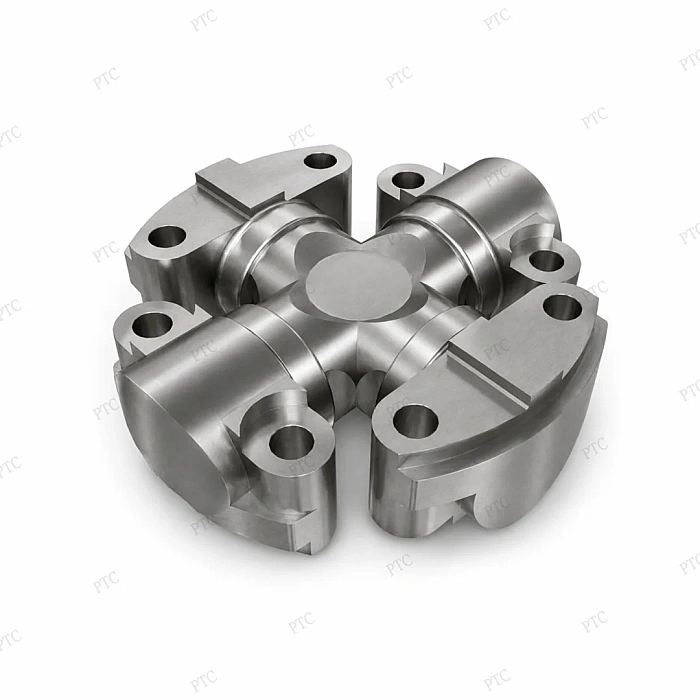

PTC-1094 Spider Assembly (OEM: CATERPILLAR 2T3013) is a heavy-duty universal joint cross assembly used in Caterpillar machinery drivelines, designed for motor graders. This spider assembly is fitted to the driveshaft / propeller shaft assembly, where it transmits engine torque through the axle universal joint, and is compatible with Caterpillar 14M motor graders .

Built from high-grade alloy steel forgings, the PTC-1094 spider assembly delivers superior fatigue strength and impact resistance for demanding earthmoving duty cycles. The trunnion journals are precision-ground and hardened to withstand continuous high-torque loading in heavy-duty off-highway applications. Each unit is dimensionally matched to OEM specifications, ensuring direct drop-in fitment with no equipment modification required, and a full quality inspection report is available on request.

Technical Specifications

PTC-1094 — SPIDER ASSEMBLY (CATERPILLAR 2T3013)

Specification	Detail
OEM Part Number	CATERPILLAR 2T3013
PTC Part Number	PTC-1094
Product Type	Spider Assembly (Universal Joint Assembly)
Machine Compatibility	Motor Graders
Application No.	CAT 14M
Application	Caterpillar 14M Motor Grader — Propeller Shaft Universal Joint
Spider / Cross Material	High-Grade Alloy Steel Forging (Hardened & Ground)
Bearing Type	Sealed Needle Roller Bearing (4 cups per assembly)
Sealing System	Three-Stage Self-Lubricated Sealed
Lubrication	Self-Lubricated — Factory Charged, Lifetime Sealed (no re-greasing required)
Maximum Articulation Angle	Up to 12° (operating) · 32° (static)
Dynamic Balancing	Applied to complete shaft assembly — G16 ISO 1940
Surface Finish	Trunnion journals: Ground to OEM tolerance class
Heat Treatment	Case hardened trunnion journals to required case depth and hardness
Operating Environment	Heavy-Duty Earthmoving & Construction — Grading, Road Building
Temperature Range	−40°C to +120°C (bearing and grease rated)
Grease Type	High-Temperature Lithium Complex Grease (Factory Charged)
Fitment	Direct OEM Replacement — No Equipment Modification Required
Weight (Approx.)	Contact PTC for exact weight with dimensional drawing
